Footcontrol Valve
Ordering  code
JVFA
Company code

350
Tree Positon five way

8A
8A：Rc1/4		 Feature
The 350 footcontrol valve has three ways to control the air fow (mid one in the closed state,other two in the ventilated states)


Spec

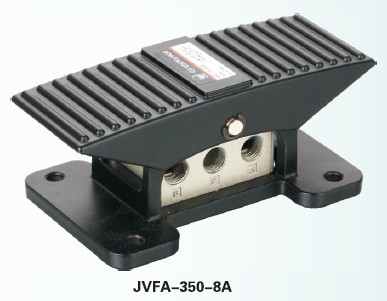

Model  JVFA-350-8A
Port code  8A
Port size  RC1/4
Port  5
Position  3
Working medium  Filtered compressed air
Tempreture  5-60℃
Ensured pressure  1.0MPA(10kgf/c㎡）
Work pressure  0.2-0.7Mpa (2-7kgf/c㎡)
Effective Area  8m㎡

Flowmeter
In pressure P1(Mpa) Out pressure P2(Mpa)  Air flow Q(m³/h)
 0.8  0.7  28
 0.7  0.6  24
 0.6  0.5  22.2
 0.5  0.4  20.2
 0.4  0.3  18.2
 0.3  0.2  15.8
 0.2  0.1  13.2

Overall dimension
