JADV 300系列1

	Ordering Code


	JADV
	Company Code

	300
	Machine Type 300 Series

	FN/W
	Drain Principle F：Float trap (N:Inner thread ,W:Outer thread ）

•Range of application
•This product is installed at the bottom of water cups for auto chargers ,air filters and air filter regulators and can auto discharge the condense water gather in the water cup .
•Technical requirements
•Work medium:compressed air / Ambient & media temperature：5-60℃ • Work pressure：0.15-1.0MPa
•Features
•Auto drain / Air shut off drain / Manual drain
•Attention

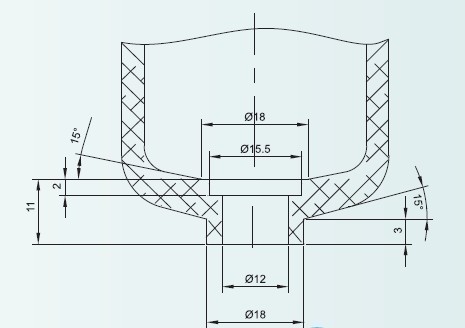

•When using ,the drainer should be installed vertically ,the drian port facing down .
